Description

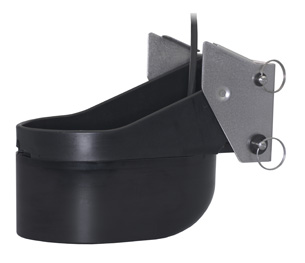

Airmar® TM260 Transom Mount Transducer
Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).
Transducer Specifications
| Frequency | 50/200 kHz |
| Power Rating | 1kW |
| Speed Sensor | No |
| Temperature Sensor | Yes |
| Mounting Style | Transom Mount |
| Elements | 8 |
| Beamwidth @ -3dB | 19 (50 kHz) 6 (200 kHz) |
