Furuno FAR2117 12Kw, 96 Nm Radar System, 19 inch

Color Display With 8' Open Array

The revolutionary FAR-21x7 series of X-band radars are the result of FURUNO's 50 years of experience in the marine electronics and advanced computer technology. This series of equipment is designed to meet the exacting standards of the International Maritime Organization (IMO) for ships of 1000 GT and more but less than 10000 GT. (NOTE:300 GT ships can carry this series of radars)

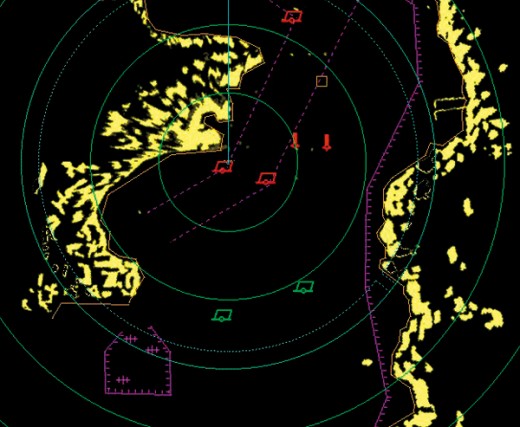

The display unit employs a 21" Color DVI-D LCD, providing an effective picture diameter of larger than 250 mm. The SXGA monitor provides crisp radar echoes, which are presented in a selected color with a day or night background color for easy observation all lighting conditions. Different colors are assigned for marks, symbols and texts for user-friendly operations.

Target detection is enhanced by sophisticated signal processing techniques such as multi-level quantization (MLQ), echo stretch, echo average, and radar interference rejecter. Two guard zones can be set at required ranges in any sector. Other ship's movements are assessed by advanced target tracking software and alerted by CPA/TCPA data readouts. The FAR-21x7 series provide ARPA and AIS (transponder unit is required) function as a standard.

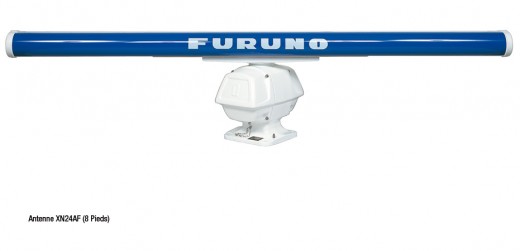

A variety of radar antenna is selectable from; 4, 6.5, 8 foot radiator. For the X-band, the rotation speed is selectable from 24 rpm for standard radars or 42 rpm for HSC. The S-band radar FAR-2137S is also available with the antenna radiator 10 or 12 feet. The S-band radar assures target detection in adverse weather where X-band radar are heavily affected by sea or rain clutter.

Standard Features:

Improved detection capability by new MIC and I/F amplifier

High resolution DVI-D LCD display providing crisp echo images

Two independent X- and S-band radars can be interswitched to meet SOLAS requirements on ships 3,000 - 10,000 GT

Easy operation by customizable function keys, trackball/wheel palm module, and rotary controls

Low spurious magnetrons meeting ITU-R unwanted emission standards

Standard ARPA functions displaying 100 ARPA targets acquisition

Display up to 1000 AIS symbols

Complies with the following IMO and IEC regulation:

IEC 60936-1 shipborne radar

IEC 60936-2 HSC radar

IEC 60872-1 ARPA

IEC 60872-2 ATA

IEC 60832-3 EPA

IEC 60945 General requirements

IMO MSC.64(67) Annex 4

IMO A.823(19)

Optional track ball system for user friendly operation from a remote station

ARPA function is provided as a standard

Interswitch capability without dedicated hardware for dual or multiple radar/ARPA installation - up to four radar systems can be connected in the network

Power Requirements:

Shipped at 115/230 VAC

115/230 VAC, 1ψ, 50/60 Hz, 270 VA

440 VAC, 3ψ, 60 Hz

380 VAC, 3ψ, 50 Hz
